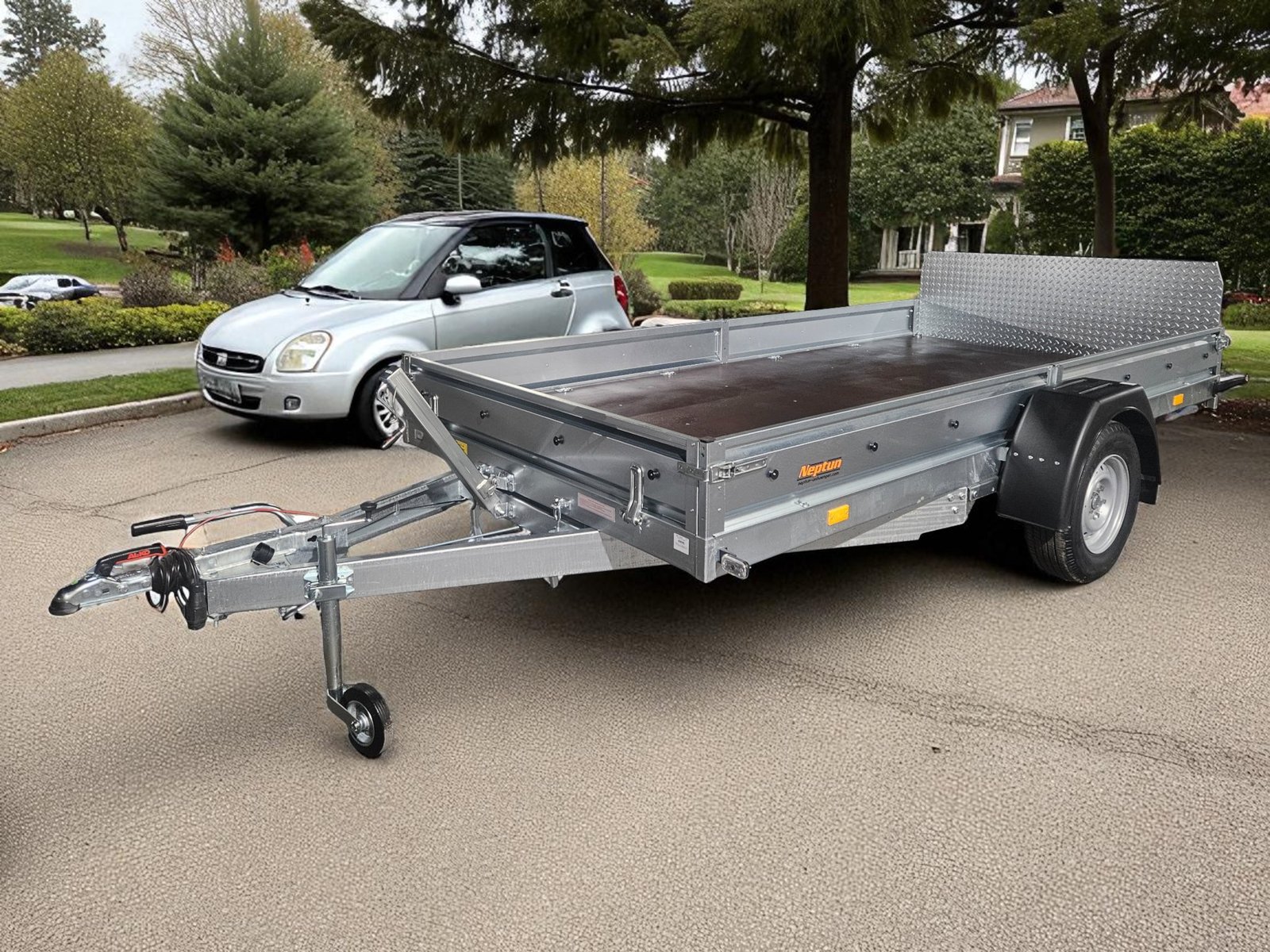

A trailer for transporting machinery, ATVs or snowmobiles
Gross Weight: 1800 kg
Payload: 1315 kg
Internal dimensions: 380 x 180 x 25 cm
Wheels: 14 ″
Front gate: steel
Tilt drawbar: Yes
1 Rigid and durable design
High durability is guaranteed by hot-dip galvanized fully welded frame and drawbar.
2 Safety and comfort
Independent suspension and AL-KO axles ensure safe and stable driving (in trailers with brakes).
Standard accessories in models 'atb' include two ramps made of pressed perforated metal sheets for easy loading and off‑loading vehicles. The ramps are stored in special slots under the platform, with additional protection from vibration and sliding out.
Vehicles in models 'atb' are transported on rails made of pressed perforated metal sheets. Trailer models' m18 ver. A 'are equipped with a 15 mm thick anti-slip plywood floor and 12 pcs of belt fastening holders.
5 Easy loading and unloading
The load platform in 'm18' is tilted to enable unloading without unhooking the trailer. The platform is stabilized and protected from tilting during loading and unloading operations with screw jack 700 kg on 'm18 wer. A' models.
6 Protection of lamps
Multifunction lamps are installed inside the rear beam. This makes them protected against damage, moisture and mud. Wiring connections are protected in the best possible way to guarantee maintenance-free operation for years.
|Name||N7-380 m18r wer. A||N13-380 m18 wer. A||N15-380 m18 wer. A||N16-380 m18 wer. A||N18-380 m18 wer. A|
|High Cover w/ Strap Fasteners, 1200 mm, 520 g/m2, Grey||AP279||AP279||AP279||AP279||AP279|
|High Cover w/ Strap Fasteners, 1200 mm, 650 g/m2, Grey||AP280||AP280||AP280||AP280||AP280|
|Hoops for High Cover, 1200 mm pipe||GA405||GA405||GA405||GA405||GA405|
|Spare Wheel, 185 R14C, 5x112 mm||-||KK008||KK008||KK008||KK008|
|Spare Wheel, 165/70 R13, 4x98 mm||KK006||-||-||-||-|
|Spare Wheelsholder, under||GA406||GA406||GA406||GA406||GA406|
|Anti-theft, Box Lock w/ Padlock||AU121||AU121||AU121||AU121||AU121|
|Anti-theft, Steel Locking Shoe w/ Key||AU090||-||-||-||-|
|Anti-theft, Coupling Lock w/ Key||AU059||-||-||-||-|
|Wheel wedge handle||AU123A||AU123A||AU123A||AU123A||AU123A|
|Set of shock absorbers for braked axles, AL-KO||-||GA355||GA355||GA356||GA356|
|Clamp for Jockey Wheel and Prop Stand, 200 mm (fi48)||OK002||OK002||OK002||OK002||OK002|
|Prop Stand, 700 mm (fi48)||KM006||KM006||KM006||KM006||KM006|
|Additional supports for the rear driveway||GA444||GA444||GA444||GA444||GA444|
|Name||N27-420 2 atb|
|Spare Wheel, 185/60 R12C, 5x112 mm||KK027|
|Spare Wheelsholder, side||GA415|
|Anti-slip plywood floor 15 mm||GA414|
|Anti-theft, Box Lock w/ Padlock||AU121|
|Wheel wedge handle||AU123A|
|Set of shock absorbers for braked axles, AL-KO||2 x GA355|
|Clamp for Jockey Wheel (fi60)||OK003|
|Jockey Wheel, (fi60)||KM008|
|Support leg swingable||KM012|
|Hand crank for support leg||KM013|
|A set of support legs||GA423|
7 Standard equipment
Standard equipment of trailers includes a wheel wedges and a jockey wheel with a clamp. In addition, single axle trailers have two ramps for platform tilting.
8 Optional accessories
15 mm thick anti-slip plywood floor that enables walking and contains any leakage (for 'atb' model).
Spare wheel mount.
Trailer support (700 mm) for 'm18 wer. A' models.
AL‑KO stabilizer that efficiently eliminates tilting from side to side, swinging and swaying.
Shock absorbers to reduce dangerous shocks, improve stability while driving and braking and ensure optimal contact between trailer wheels and road surface.
Hoops and high cover 1200 mm (for 'm18 wer. A' models).
