Neptun Trailer

Multi N7-253 HOBBY [GN286]

Multi

model: N7-253 HOBBY [GN286]

Product specification

Trailer for snowmobile or quad-s and small machines

  •  Loading Surface 2530x1500x400 mm.
  •  The trailer is available in the registration version with DMC: 400 kg, 450 kg, 500 kg, 550 kg, 600 kg, 650 kg, 700 kg, 750 kg.
  •  Frame and shaft are welded and hot-dip galvanized,
  •  The box is hinged and secured by a gas spring,
  •  9 mm thick anti-slip plywood floor.
  •  A stable rear side that serves as a loading ramp,
  • The trailer is ready for a winch; the winch is available as an accessory,
  • The sides are equipped with compensating locks, making closing easier and sealing the loading space,
  • The trailer is equipped with additional floor handles, one of which is installed in the center of the front,
    N7-253 HOBBY [GN286]

    Type: for machinery

    Gross Weight: 750 kg

    Payload: 551 kg

    Internal dimensions: 253 x 150 x 40 cm

    Wheels: 13 ″

    Axle: 1

    Brakes: No

    Front gate: steel

    Tilt drawbar: Yes

    Multi

    1 Rigid and durable design

    High durability of the trailer design is ensured by the fully welded frame, cold-bent frame sections of the U-shaped cross section frame and 4 to 5 lateral beams.

    2 Safety and comfort

    V-drawbar with reinforcement, independent suspension and rubber spring axle ensure safe and stable driving.

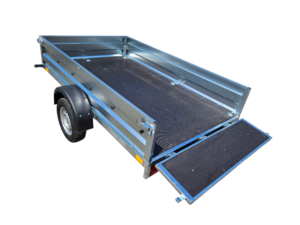

    3 Ramps

    The optional rear sidewall can be used as a ramp. It is made of hot-dip galvanized riffled metal sheet with a thickness of 3 mm.

    4 Easy load securing

    Trailer are equipped with retractable floor handles used for fastening the load with belts.

    5 Protection of lamps

    Lamps are placed on the tailgate so that after tilting the platform it is possible to load the trailer directly without the use of ramps. Cable connections are well protected guaranteeing long-lasting maintenance-free operation.



    Accessory GN151 GN152 GN155
    Name N7-255 multi N7-305 multi N13-305 multi
    Mesh Side Kit, 800 mm GA317 GA318 GA318
    Side Extension Kit, 200 mm GA315 GA316 GA316
    Spare Wheel, 155/70 R13, 4x100 mm KK022 KK022 -
    Spare Wheel, 185 R14C, 5x112 mm - - KK008
    Spare Wheel Support, drawbar GA159 GA159 GA159
    Anti-theft, Steel Locking Shoe w/ Key AU090 AU090 -
    Anti-theft, Box Lock w/ Padlock AU121A AU121A AU121A
    Anti-theft, Coupling Lock w/ Key AU059 AU059 -
    Clamp for Jockey Wheel and Prop Stand, 200 mm OK002 OK002 OK002
    Jockey Wheel, 200 mm KM002 KM002 KM002
    Jockey Wheel w/ Clamp, 200 mm GA227 GA227 GA227
    Loading Ramp, 300 mm GA313 GA313 GA313
    Winch, 1100 kg QS013 QS013 QS013
    Winch Stand GA314 GA314 GA314
    Roller bracket to the winch GA392 GA392 GA392
    Jack-screw GA391 GA391 GA391
    Jack-screw 700 kg GA391A GA391A GA391A
    Shock Absorber Kit, 750 kg GZ598 GZ598 -
    Shock Absorber, 750 kg QS008 QS008 -
    Set of shock absorbers for braked axles, AL-KO - - GA355



    Accessory GN222 GN223 GN224 GN164
    Name N7-380 m18r N13-380 m18 N15-380 m18 N7-350 CT

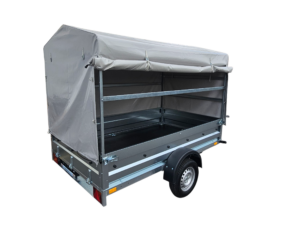

    High Cover w/ Strap Fasteners, 1200 mm, 650 g/m2, Grey AP280 AP280 AP280 AP256
    Hoops for High Cover, 1200 mm pipe GA405 GA405 GA405 GA349
    Spare Wheel, 185 R14C, 5x112 mm - KK008 KK008 -
    Spare Wheel, 165/70 R13, 4x100 mm KK026  -  - -
    Spare Wheel, 155/70 R13, 4x100 mm - - - KK022
    Spare Wheelsholder, under GA406 GA406 GA406 -
    Anti-theft, Box Lock w/ Padlock AU121A AU121A AU121A AU121A
    Anti-theft, Steel Locking Shoe w/ Key AU090 - - AU090
    Anti-theft, Coupling Lock w/ Key AU059 - - AU059
    Set of shock absorbers for braked axles, AL-KO - GA355 GA355 -
    Jockey Wheel, 200 mm - - - KM002
    Clamp for Jockey Wheel and Prop Stand, 200 mm (fi48) OK002 OK002 OK002 OK002
    Jockey Wheel w/ Clamp, 200 mm - - - GA227
    Prop Stand, 700 mm (fi48) KM006 KM006 KM006 KM006
    Design for the transport of boats - - - GA369
    Additional side supports for GA369 - - - GA370
    Winch base - - - GL057
    Gas Spring - - - QS009
    Winch w/ Belt , 450 kg  - - - QS011



    Akcesoria GN222 GN223 GN224 GN164
    Nazwa N7-380 m18r N13-380 m18 N15-380 m18 N7-350 CT
    Plandeka, 1200 mm, 650g/m2, szara AP280 AP280 AP280 AP256
    Stelaż podplandekowy, 1200 mm z rury GA405 GA405 GA405 GA349
    Koło zapasowe, 185 R14C, 5x112 mm - KK008 KK008  -
    Koło zapasowe, 165/70x13 4x100 mm KK026  -  -  -
    Koło zapasowe, 155/70 R13, 4x100 mm - - - KK022
    Uchwyt koła zapasowego, dolny GA406 GA406 GA406  -
    Zestaw stabilizatora toru jazdy - GA402 GA403  -
    Blokada do zaczepu kulowego AU121A AU121A AU121A AU121A
    Blokada do zaczepu kulowego AU090 - - AU090
    Zamek do zaczepu kulowego AU059 - - AU059
    Zestaw amortyzatorów do osi hamowanej - GA355 GA355  -
    Koło podporowe, 200 mm - - - KM002
    Obejma podpory (fi 48)  OK002 OK002 OK002 OK002
    Zestaw koła manewrowego, fi 200 ze śrubami - - - GA227
    Podpora przyczepy 700 (fi 48) KM006 KM006 KM006 KM006
    Wciągarka, 450 kg - - - QS011
    Podstawa wciągarki - - - GL057
    Konstrukcja do przewozu łodzi - - - GA369
    Zestaw dodatkowych podpór bocznych do GA369 - - - GA370
    Sprężyna gazowa - - - QS009





    6 Easy loading and unloading

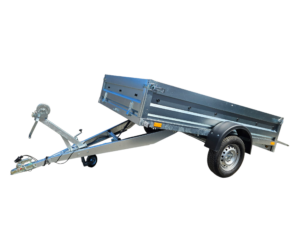

    MULTI trailers have a tilting load platform enabling unloading without the necessity of unhooking the trailer. Installation of gas spring stabilises the floor tilt during loading and unloading.
