Multi
multifunctional platform.

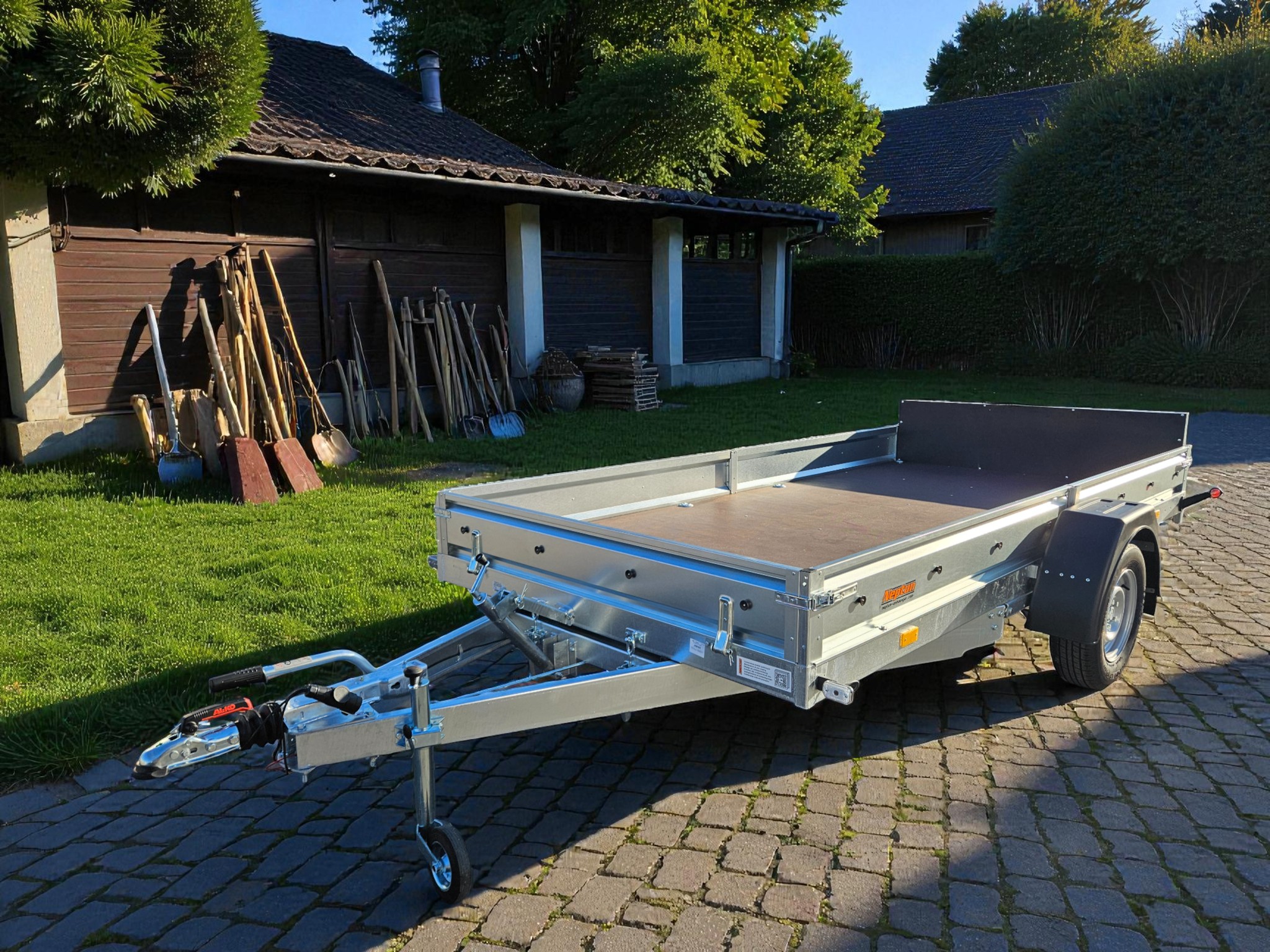

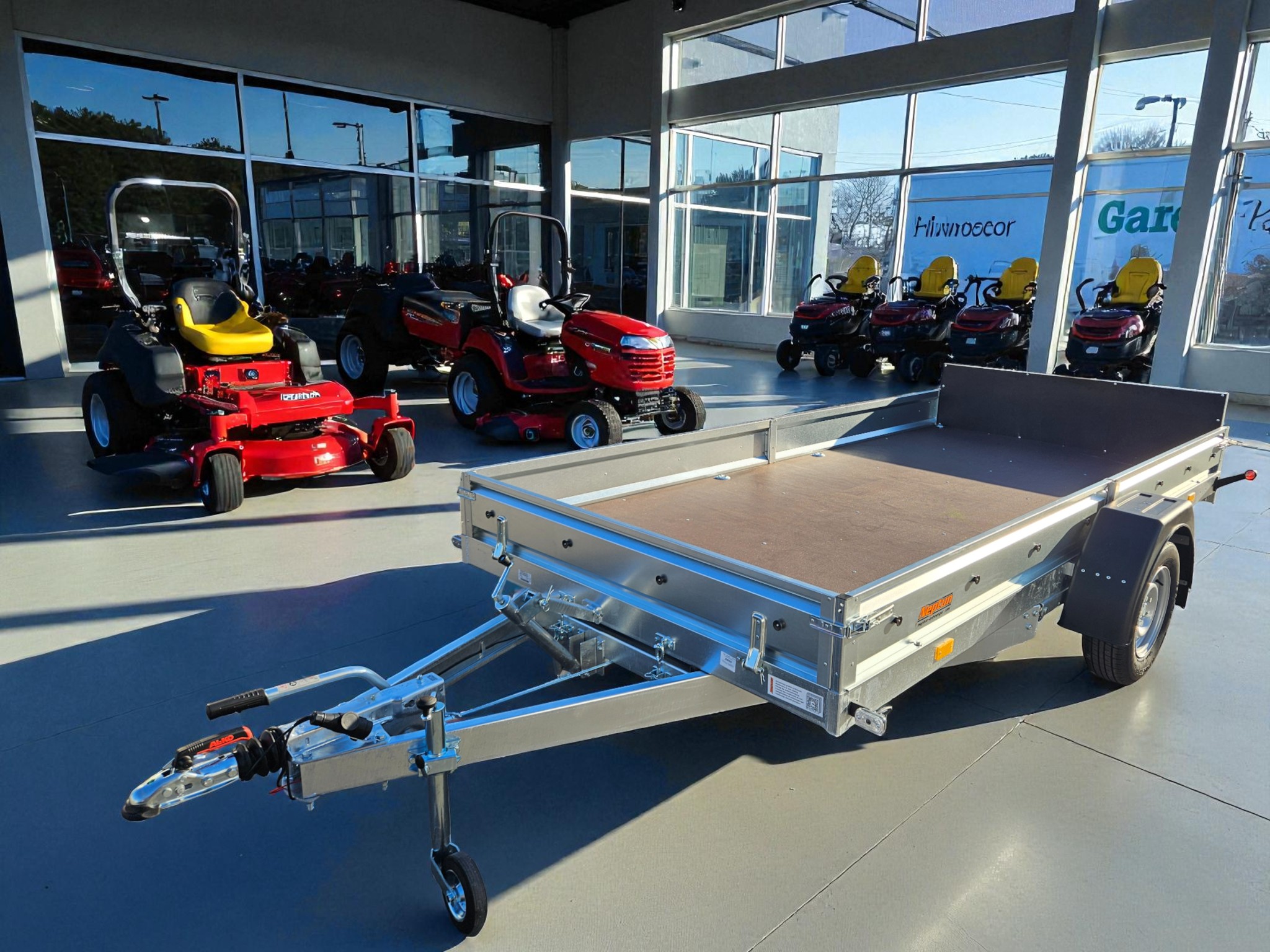

1 Rigid and durable design
High durability of the trailer design is ensured by the fully welded frame, cold-bent frame sections of the U-shaped cross section frame and three lateral beams.
2 Safety and comfort
V-drawbar with reinforcement, independent suspension and rubber spring axle ensure safe and stable driving.
3 Ramps
Standard accessories of the N7-240 multi trailer include two ramps facilitating the entry and exit of a vehicle to the platform. In other models the optional rear sidewall can be used as a ramp. It is made of hot-dip galvanized riffled metal sheet with a thickness of 3 mm.
4 Easy load securing
N7-240 multi trailer has railings used to secure the load. Other models are equipped with retractable floor handles used for fastening the load with belts.
5 Protection of lamps
Multifunction lamps of trailer N7-240 multi are installed inside the tailgate, beneath the ramps. This protects them against damage, moisture and mud. Lamps of other MULTI models are placed on the tailgate so that after tilting the platform it is possible to load the trailer directly without the use of ramps. Cable connections are well protected guaranteeing long-lasting maintenance-free operation.
| Accessory | GN027 | GN151 | GN152 | GN154 | GN155 |
| Name | N7-240 multi | N7-255 multi | N7-305 multi | N10-305 multi | N13-305 multi |
| Mesh Side Kit, 800 mm | - | GA317 | GA318 | GA318 | GA318 |
| Side Extension Kit, 200 mm | - | GA315 | GA316 | GA316 | GA316 |
| Spare Wheel, 155/70 R13, 4x98 mm | - | KK014 | KK014 | - | - |
| Spare Wheel, 165/70 R13, 4x98 mm | KK006 | - | - | - | - |
| Spare Wheel, 185/70 R13 , 4x100 mm | - | - | - | KK007 | - |
| Spare Wheel, 185 R14C, 5x112 mm | - | - | - | - | KK008 |
| Spare Wheel Support, drawbar | GA159 | GA159 | GA159 | GA159 | GA159 |
| Anti-theft, Steel Locking Shoe w/ Key | AU090 | AU090 | AU090 | AU090 | AU090 |
| Anti-theft, Box Lock w/ Padlock | AU121 | AU121 | AU121 | AU121 | AU121 |
| Anti-theft, Coupling Lock w/ Key | AU059 | AU059 | AU059 | - | - |
| Clamp for Jockey Wheel and Prop Stand, 200 mm | OK002 | OK002 | OK002 | OK002 | OK002 |
| Jockey Wheel, 200 mm | KM002 | KM002 | KM002 | KM002 | KM002 |
| Jockey Wheel w/ Clamp, 200 mm | GA227 | GA227 | GA227 | GA227 | GA227 |
| Prop Stand, 700 mm | KM006 | - | - | - | - |
| Gas Spring, Fitting for Drawbar-Chassis | GA350 | - | - | - | - |
| Middle driveway | GA101 | - | - | - | - |
| Loading Ramp, 300 mm | - | GA313 | GA313 | GA313 | GA313 |
| Winch, 1100 kg | - | QS013 | QS013 | QS013 | QS013 |
| Winch Stand | - | GA314 | GA314 | GA314 | GA314 |
| Roller bracket to the winch | - | GA392 | GA392 | GA392 | GA392 |
| Jack-skrue | - | GA391 | GA391 | GA391 | GA391 |
| Jack-skrue 700 kg | - | GA391A | GA391A | GA391A | GA391A |
| Shock Absorber Kit, 750 kg | GZ598 | GZ598 | GZ598 | - | - |
| Shock Absorber, 750 kg | QS008 | QS008 | QS008 | - | - |
| Set of shock absorbers for braked axles, AL-KO | - | - | - | GA355 | GA355 |
| Accessory | GN222 | GN223 | GN224 | GN225 | GN226 | GN164 |
| Name | N7-380 m18r | N13-380 m18 | N15-380 m18 | N16-380 m18 | N18-380 m18 | N7-350 CT |
| High Cover w/ Strap Fasteners, 1200 mm, 520 g/m2, Grey | AP279 | AP279 | AP279 | AP279 | AP279 | AP239 |
| High Cover w/ Strap Fasteners, 1200 mm, 650 g/m2, Grey | AP280 | AP280 | AP280 | AP280 | AP280 | AP256 |
| Hoops for High Cover, 1200 mm pipe | GA405 | GA405 | GA405 | GA405 | GA405 | GA349 |
| Spare Wheel, 185 R14C, 5x112 mm | - | KK008 | KK008 | KK008 | KK008 | - |
| Spare Wheel, 165/70 R13, 4x98 mm | KK006 | - | - | - | - | - |
| Spare Wheel, 155/70 R13, 4x98 mm | - | - | - | - | - | KK014 |
| Spare Wheelsholder, side | - | - | - | - | - | GA360 |
| Spare Wheelsholder, under | GA406 | GA406 | GA406 | GA406 | GA406 | - |
| Driving stabilizer | - | GA402 | GA403 | GA403 | GA403 | - |
| Anti-theft, Box Lock w/ Padlock | AU121 | AU121 | AU121 | AU121 | AU121 | AU121 |
| Anti-theft, Steel Locking Shoe w/ Key | AU090 | - | - | - | - | AU090 |
| Anti-theft, Coupling Lock w/ Key | AU059 | - | - | - | - | AU059 |
| Set of shock absorbers for braked axles, AL-KO | - | GA355 | GA355 | GA356 | GA356 | - |
| Jockey Wheel, 200 mm | - | - | - | - | - | KM002 |
| Clamp for Jockey Wheel and Prop Stand, 200 mm (fi48) | OK002 | OK002 | OK002 | OK002 | OK002 | OK002 |
| Jockey Wheel w/ Clamp, 200 mm | - | - | - | - | - | GA227 |
| Prop Stand, 700 mm (fi48) | KM006 | KM006 | KM006 | KM006 | KM006 | KM006 |
| Design for the transport of boats | - | - | - | - | - | GA369 |
| Additional side supports for GA369 | - | - | - | - | - | GA370 |
| Winch base | - | - | - | - | - | GL057 |
| Gas Spring | - | - | - | - | - | QS009 |
| Winch w/ Belt , 450 kg | - | - | - | - | - | QS011 |
6 Easy loading and unloading
MULTI trailers have a tilting load platform enabling unloading without the necessity of unhooking the trailer. Installation of gas spring stabilises the floor tilt during loading and unloading.
